Reference: TUR112
Turbo screw with countersunk head for mounting 112 mm long windows. Screw diameter: 7.5 mm Screw length: 112 mm Pre-drilling diameter: 6 mmTightening bit type: TX30 (typ Torx)
Reference: TORX30
Screwdriver bit attachment TX30 star profile (Torx type)
Reference: TUR152
Turbo screw with countersunk head for mounting windows with a length of 152 mm. Screw diameter: 7.5 mm Screw length: 152 mm Pre-drilling diameter: 6 mmTightening bit type: TX30 (typ Torx)
Reference: MDK15
Set of 8 wooden mounting wedges Wooden wedges are indispensable helpers when installing windows and doors! Our wooden mounting wedges have the following dimensions: 15 cm x 2,5 cm x 2,5 cm - 0,1 cm. Thewooden mounting wedges are mainly used for aligning window and door frames in the opening in all axes. Thewooden wedges are also used for temporary fixing...
Reference: PODKL-BRV
Brand: Aplast
Sub-sill (window sill support) profile for Aplast 60 windows – 1 metre length

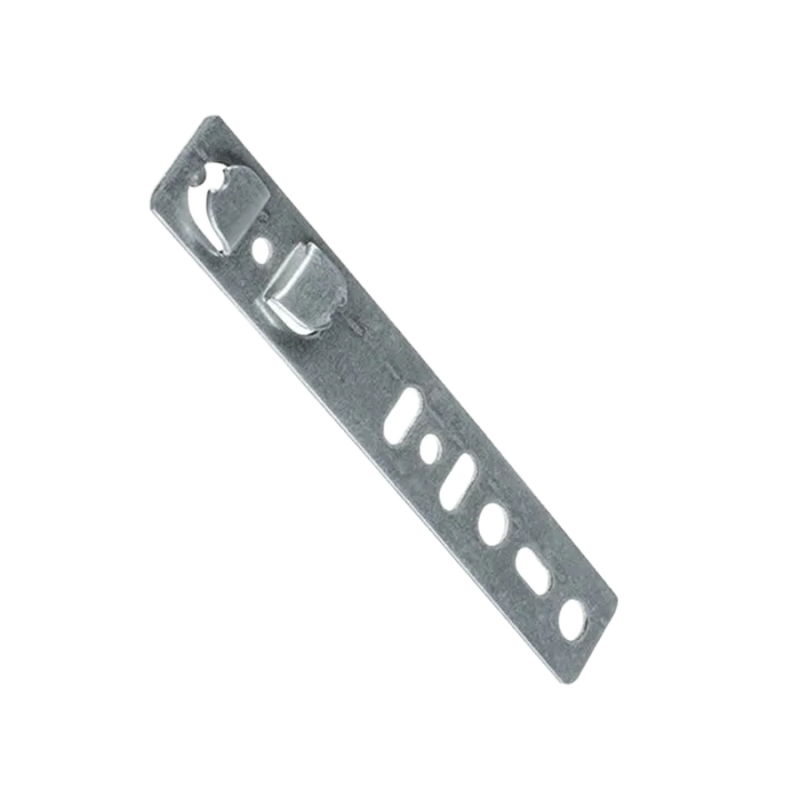

Mounting anchor for windows Aplast 60
Mounting wall anchor for windows and doors is designed for fixing frames of plastic windows and doors. The window anchors have holes for fixing with dowels or turbo screws. Material - steel, hot-dip galvanized.
The dimensions of the anchors correspond exactly to the windows and doors we offer.
Suitable for combination with the turbo screw we offer!
Use of the anchors when installing windows and doors
The usual positioning of the anchors around the perimeter of the window or door frame is shown in the drawing below. If it is not possible to provide anchoring at the specified distances (e.g. due to the fitting of roller shutters, lintels, etc.), it is necessary to ensure sufficient reinforcement of the relevant part of the frame.The same rules should be followed when joining windows and doors into assemblies. If possible, it is not recommended to drill through the window frame at the bottom, which serves to drain rainwater away from the structure. If this cannot be ensured, it is recommended that the head of the screw used be thoroughly sealed to prevent leakage into the profile. When anchoring, it is always necessary to take into account the suitability of the perimeter wall material, the depth of the drilling, the screw diameter, the distance from the wall edge, the free length of the screw (width of the connection joint = gap between the window frame and the wall).
Picture of window anchoring according to ČSN 746077:
A - anchor spacing: metal window max. 800mm | wooden window max. 800mm | plastic window max. 700mm
E - distance from the inner corner of the frame, mullion or partition: approx. 150 mm | approx. 250mm for PVC tinted windows
Reference: SADA01-TRO
Mounting kit for mounting 1 piece of window or balcony door, which includes - anchors (6pcs), turbo screws (6pcs) and lock washers (3x 3pcs).
Reference: aluklika_BO
Bronze handle in basic design suitable for most windows and doors.
Reference: KLIKBLOKwh
Aluminium security handle with locking button for windows and patio doors in white. (handle with push button, handle with knob, handle with child lock)
Reference: ME500_70
ME500 TwinAktiv | 70mm with butyl | Window film illbruck
Reference: 714FRAL7043_GREY
Brand: SKYLIGHT
Trim for roof window 78 x 140 cm (780 x 1400 mm), GREY for profiled roofing ATTENTION: Each roof window must be accompanied by a flashing!
Reference: PODKL-BRV
Brand: Aplast
Sub-sill (window sill support) profile for Aplast 60 windows – 1 metre length
No customer reviews for the moment.
Wall mounting anchor for windows Aplast 60
